450mm Width Galvanized Panel High Rib Metal Lath Construction Building Material

450mm Width Galvanized Panel High Rib Metal Lath Construction Building Material

 High Rib Metal Lath Information

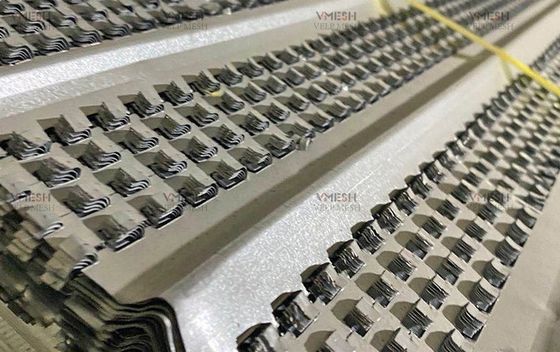

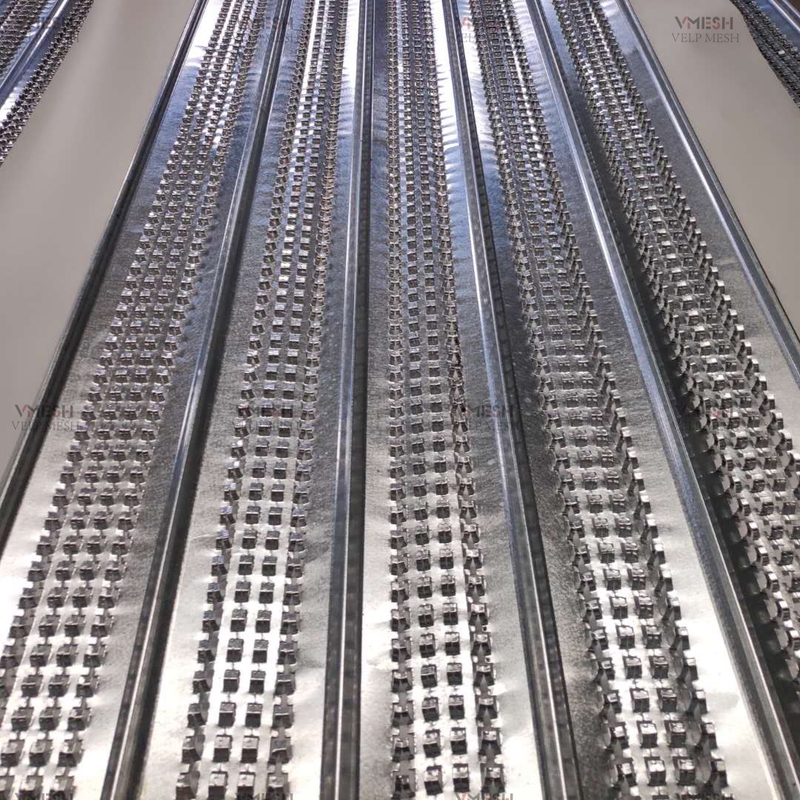

The 450mm Width Galvanized Panel High Rib Metal Lath is a durable and high-strength construction material designed for modern concrete reinforcement and permanent formwork applications. Manufactured from high-quality galvanized steel sheets, it is processed through precision expanding and profiling technology to form a deep rib structure, providing exceptional rigidity, load-bearing capacity, and superior bonding performance with concrete.

This high rib metal lath is specifically engineered to serve as an efficient alternative to traditional formwork systems such as plywood or timber boards. Its unique rib geometry enhances mechanical interlocking between concrete layers, ensuring strong adhesion and reducing the risk of cracking, shrinkage, or delamination. The 450mm standard width makes it especially suitable for fast installation in walling, flooring, and tunnel lining systems.

The galvanized coating provides excellent corrosion resistance, allowing the product to withstand harsh environmental conditions such as humidity, coastal exposure, industrial pollution, and underground construction environments. This ensures long-term structural durability and reduces maintenance costs over the service life of the project.

High Rib Metal Lath Parameter

High Rib Metal Lath Application

The 450mm width design is optimized for ease of handling and installation. It can be quickly cut, bent, and fixed on-site according to engineering requirements, making it suitable for both large-scale infrastructure projects and small construction works. Its lightweight nature significantly reduces labor intensity and installation time, improving overall construction efficiency.

This product is widely used in applications such as concrete wall reinforcement, floor decking systems, bridge construction, retaining walls, tunnels, basements, and high-rise building structures. It is particularly effective in projects requiring continuous pouring and strong bonding between successive concrete layers.

High Rib Metal Lath Advantage

1.can be installed quicker than plywood or steel formwork.
2.can be placed before rod reinforcement which is then installed by piercing through the mesh area.
3.eliminates preparation of the joint surface allows a high rate of rise of concrete
4.enables the pour to be visually monitored
5.reduces the risk of voids and honeycombing
6.can save time - it is left in place so formwork stripping is eliminated - only the supports are removed.
7.often, Hy-Rib can be supported by existing or extra reinforcement. The whole structure can be left in the concrete which
eliminates the placing and removal of temporary supports.
8.no need to clean, reface and oil formwork

About us

Found in 2000, Our workshop starts from 10 people team under the leading of Mr CUI (Our General Manager).
By 2010, We enlarge our workshops to 5000 sqm , There are complete different departments Production, Sales, After-sales,Technology, Research and Development, Procurement, Design etc .
Till today , Anping Velp Wire Mesh Products Co.,Ltd have developed an enviable reputation for the research, development and as the premier option for expanded metal , perforated metal mesh , safety walkway grating ,Stainless steel 304 /316 weave mesh ,Building stucco mesh products in China.

FAQ

Q1:Can i get a free samples?

A:Yes,we have free samples to be provided anytime.

Q2:What type of materials do you use for your products?

A:Carbon steel,stainless steel,aluminum,aluminum alloy ,copper,galvanized plate.Special material is also available.

Q3:Is there quality control on all production lines ?

A:Yes,all production line have adequate quality control.

Q4:What is your terms of payment ?

A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.

Q5:How about the delivery time ?

A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
